Flanges play an important role in piping systems serving as a mechanical component that connects pipes, valves and other equipment. They provide a secure and leak-proof connection by bolting them together and their design allows for easy maintenance, disassembly and inspection. In this blog, we will discuss various types of flanges and the materials used and their significance and application in different industries.
Overview of Flanges and Their Importance in Piping Systems
Flanges are widely employed to connect pipes in many different industries including oil gas, chemical processing, power generation, water purification and others. A strong leakproof joint is created that facilitates easy assembly and disassembly making maintenance and inspection easier. Flanges also help accommodate thermal expansion and contraction which is crucial in many high-temperature systems.

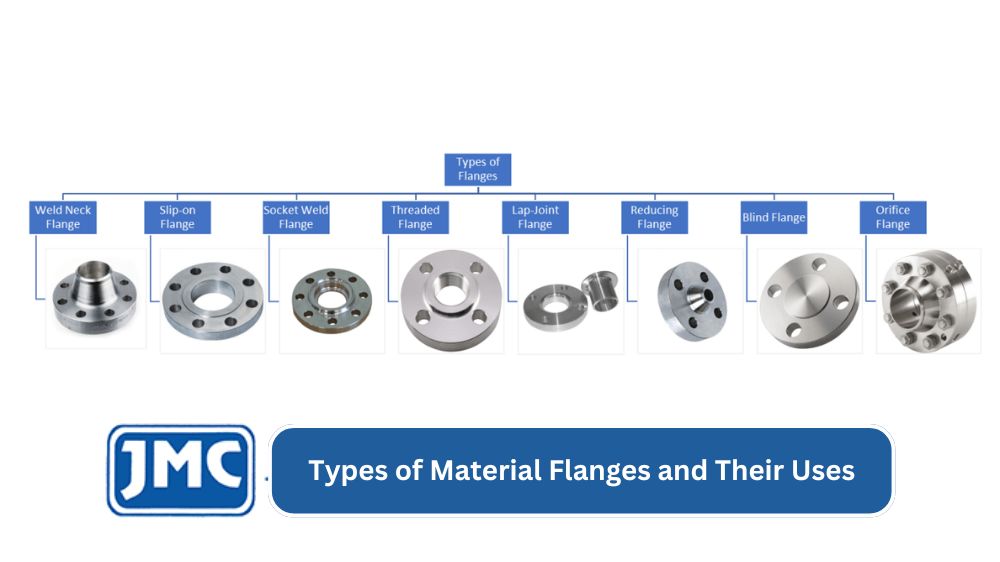

Types of Flanges
Weld Neck Flange
Weld neck flanges are ideal for high-pressure and high-temperature applications. Their tapered neck allows for a strong, welded connection to the pipe, reducing stress concentration. These flanges are mainly applied in oil and gas, power plant and chemical processing where reliable and durable connections are required.
Slip-On Flange
Slip-on flanges are very useful and can be installed easily, hence they are used in low pressure systems. They slip over the end of the pipe and are then welded in place. They are however not suitable for high demanding environments, though they can be used in water systems, drainage and other systems.
Socket Weld Flange
Socket weld flanges are commonly used in small-diameter, high-pressure pipelines. The pipe fits into the socket of the flange and the connection is welded around the pipe’s circumference. These flanges are ideal for applications in the chemical, oil and gas industries where high pressure is a concern and the pipe diameter is relatively small.
Threaded Flange
Threaded flanges do not require welding, as they are screwed onto the pipe. Such flanges are commonly used in low pressure systems and conditions where welding is not desirable such as in corrosive or explosive situations. They are often used in the construction, food and beverage industries.
Blind Flange
Blind flanges are used to close the end of a pipeline, either permanently or temporarily. They are essential for check and repair since they ensure that no fluids can pass through the system but allow easy access to the interior parts. Blind flanges are often used in the oil and gas industry.
Lap Joint Flange
Lap joint flanges are designed to work with stub ends, allowing for easy alignment during installation. This makes them suitable for situations where the pipes have to be able to bend in order to align well, such as in systems that are frequently disassembled for purposes of maintenance. These flanges are commonly used in the chemical and petrochemical industries.
Ring Type Joint (RTJ) Flange
RTJ flanges are designed for high-pressure and high-temperature applications. They have a metal ring seal which provides secure connection to avoid any leakage of the liquid. These flanges are applied in oil, gas and petrochemical industries where sealing is very crucial under various conditions.
Orifice Flange
Orifice flanges are specially designed for flow measurement applications. These flanges have an orifice plate for flow measurement of liquids or gases and are suitable for use in the oil and gas and chemical industries.
Types of Material Flanges
Selection of the material for flanges is dependent on the application requirements, i.e, temperature, pressure, and exposure to corrosive environments. Some of the most commonly used materials for flanges are as follows:
Stainless Steel Flanges (SS 304, SS 316, SS 321, SS 904L)
Stainless steel flanges are known for their corrosion resistant and they are used in environments where rust and corrosion is the concern. Because of their hygienic features, they are widely applied in chemical processing, marine and food and beverage industries.
Carbon Steel Flanges (ASTM A105, A350 LF2)
Carbon steel flanges are strong and durable, making them suitable for high-pressure and high-temperature applications. These flanges are used in many industries such as the oil and gas industries, power plants and water and other industries that require strength and reliability.
Alloy Steel Flanges (ASTM A182 F5, F9, F11, F22)
Alloy steel flanges are manufactured with specific combination of alloy materials to enhance the strength, hardness and ability to withstand wear and high temperatures. These flanges are most commonly used in power plants, oil refineries and petrochemical industries as such industries involve both high temperatures and pressures.
Duplex & Super Duplex Steel Flanges (Duplex 2205, Super Duplex 2507)
Duplex and super duplex steels offer superior corrosion resistance and high tensile strength, making them ideal for marine, offshore and chemical industries. It is used in environments having high stress and exposure to corrosive fluids such as seawater.
Nickel Alloy Flanges (Inconel, Monel, Hastelloy, Nickel 200/201)
Nickel alloy flanges are known for their excellent resistance to extreme temperatures and corrosion. These flanges are used in applications where standard stainless steel would not perform such as in aerospace, chemical processing and nuclear power plants.
Copper Nickel Flanges (Cu-Ni 90/10, Cu-Ni 70/30)
Copper-nickel flanges are resistant to corrosion in seawater hence they are suitable for use in marine and desalination industries. They are also used in heat exchangers and cooling systems because they possess good thermal conductors.
Titanium Flanges (Grade 2, Grade 5)
Titanium flanges are lightweight yet strong and are highly resistant to corrosion in both acidic and alkaline environments. These flanges are applied in the aerospace, medical and marine industries where strength, light weight and corrosion resistance are critical.
Uses of Flanges in Various Industries
Flanges are crucial components across a wide range of industries, where their role in providing secure connections is paramount. Here’s a look at some of the key industries that rely on flanges:
Oil & Gas Industry
Flanges in the oil and gas industry are designed to withstand high pressures, extreme temperatures and corrosive environments. They are essential in pipelines, refineries and offshore platforms.
Chemical & Petrochemical Plants
Chemical plants use flanges that are made from stainless steel, alloy steel and nickel alloys because they offer corrosion resistance to the chemicals as well as resistant to high temperatures.
Power Plants & Boilers
In power plants, flanges made of carbon steel, alloy steel and stainless steel are used in steam and high-temperature systems to connect various parts of boilers, heat exchangers and turbines.
Water Treatment & Desalination
Corrosion-resistant materials like copper-nickel and duplex steel are used in water treatment and desalination facilities to withstand the harsh environmental conditions of water systems.
Marine & Shipbuilding
Shipbuilding and offshore structures require marine grade flanges that are often made of duplex steel, copper-nickel and titanium to resist seawater and high stress.
Food & Beverage Industry
Stainless steel hygienic flanges are essential in food and beverage industry as they maintain hygienic conditions and prevent contamination.
Factors to Consider When Choosing a Flange
When selecting a flange, it is important to consider:
Flange Material: The material of the flange should be suitable for the fluid or gas that is going to be transported.
Pressure and Temperature Conditions: Choose a flange that can withstand pressure and temperature conditions of the system.
Corrosion and Environmental Resistance: Select materials that can resist corrosion in the specific environment.
Cost-Effectiveness: Consider the availability and cost of materials especially for large-scale operations.
Conclusion
The right flange material and type can be a guarantee of the durability, safety and efficiency of a piping system. Stainless steel, alloy steel, duplex steel, titanium and so on each of them has its own properties suitable to the industries. To select the best flange type and material for their needs, industries will have to understand the various flange types and materials that are available.
