Power generation systems operate at high temperatures and without margin for error. Steam temperatures in modern thermal plants reach 600°C or higher. Pressures in boiler circuits exceed 250 bar. Additionally, aggressive oxidation, sulfur-laden flue gases, and the daily stress of thermal cycling and most conventional piping materials fail before their rated service life ends.
Incoloy 800 pipes meet these conditions without compromise. This nickel-iron-chromium alloy has the uniform mechanical strength that carbon steel and regular stainless grades cannot provide across thermal power plants, nuclear facilities, boilers, heat exchangers and superheaters. For engineers specifying high-temperature alloy pipes or heat-resistant industrial pipes, Incoloy 800 pipe applications cover the most demanding process lines in any power generation facility.

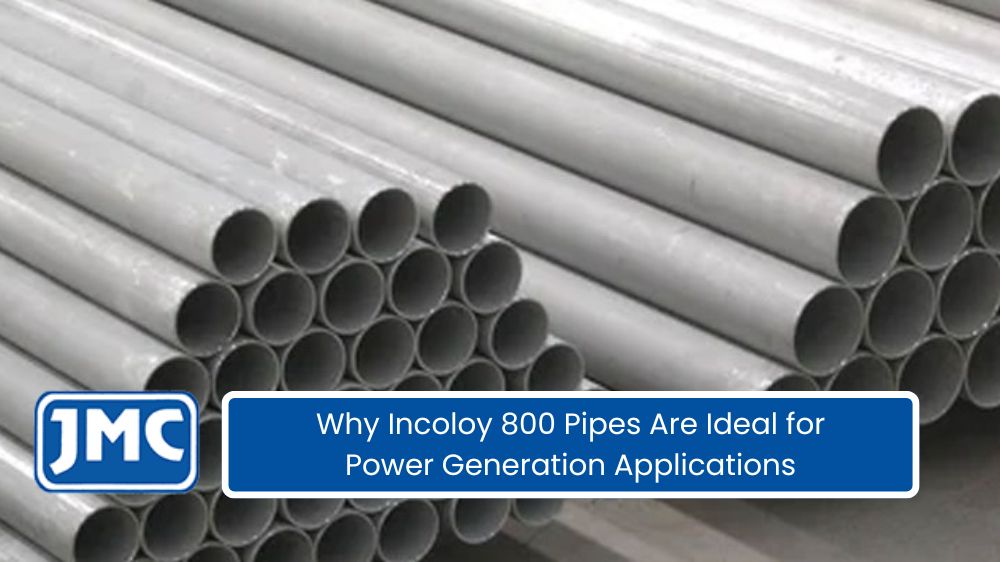

What Are Incoloy 800 Pipes?
Incoloy 800 pipes are nickel-iron-chromium alloy pipes engineered for continuous service in high-temperature and corrosive environments. The alloy composition holds 30–35% nickel, 19–23% chromium, and a balance of iron, with controlled additions of carbon, aluminum, and titanium.
That combination produces four properties critical to power generation:
- Heat resistance up to 980°C for continuous service
- Oxidation resistance from a stable Cr2O3 surface layer that blocks oxygen diffusion at high temperatures
- Mechanical strength above 200 MPa tensile strength at 700°C, where austenitic stainless steels lose structural integrity
- Corrosion resistance in steam, sulfur compounds, and mixed oxidizing-reducing atmospheres
Standard 304 and 316 stainless steel lose strength rapidly above 500°C and suffer accelerated oxidation in steam-rich environments. Incoloy 800 maintains dimensional stability at temperatures 200–300°C higher than those grades allow and this directly extends service intervals and reduces pipe replacement frequency.
Why Incoloy 800 Pipes Are Ideal for Power Generation Applications
- Excellent High-Temperature Strength
Incoloy 800 retains a yield strength of approximately 170 MPa at 750°C. Most austenitic stainless grades cannot match beyond 550°C. That margin supports structural integrity in superheater circuits and high-pressure steam lines running continuous duty cycles.
- Superior Oxidation and Corrosion Resistance
Steam lines, flue gas ducts, and boiler feed systems expose piping to water vapor, carbon dioxide, and sulfur compounds simultaneously. Incoloy 800 handles this mixed-gas environment without the pitting or intergranular attack that shortens stainless steel service life.
- Resistance to Thermal Cycling
Power plants cycle daily through startup, full load, and shutdown sequences, pushing piping through temperature swings of 400–600°C. Incoloy 800 has a stable coefficient of thermal expansion of 14.4 µm/m°C that reduces thermal stress accumulation and prevents the microcracking that repeated cycling causes in lower-alloy materials.
- Long-Term Structural Stability
Incoloy 800 shows no sigma-phase formation below 900°C, avoiding the embrittlement that affects high-chromium ferritic steels after extended thermal exposure. Pipe walls stay dimensionally stable over 20+ year service periods.
- Reliable Pressure Handling
Boiler circuits and high pressure steam headers are designed to operate at 100 to 300 bar depending on the plant design. These pressures are carried by Incoloy 800 pipes that are ASME B36.19M and ASTM B407 certified across wall thicknesses from Schedule 5S through Schedule 160, covering thin wall heat exchanger tubing as well as heavy wall main steam piping.
Key Applications of Incoloy 800 Pipes in Power Generation
- Boiler Tubing Systems
Boiler waterwall and superheater circuits keep steam at 450–600°C while carrying pressures above 150 bar. Incoloy 800 tubes handle this without the oxidation scaling that forms on carbon steel, cutting corrosion-related failures that force emergency outages. Plants using Incoloy 800 in high-heat-flux boiler zones report tube replacement intervals up to 3 times longer than with standard ferritic grades.
- Heat Exchangers
Shell-and-tube heat exchangers transfer heat between steam, feedwater, and cooling circuits at differential temperatures exceeding 200°C. Incoloy 800 tubes maintain wall integrity under thermal gradients that cause fatigue cracking in 316L stainless steel after 5–7 years, extending heat exchanger service to 15 years or more with standard inspection schedules.
- Superheaters and Reheaters
Superheater tube banks are situated in the hottest boiler zone and are exposed directly to combustion gas streams of 900–1100°C. Incoloy 800 tolerates these temperatures while resisting carburization and sulfidation from combustion byproducts, making it the standard material specification for superheater outlet headers in coal and gas-fired plants.
- Nuclear Power Plants
Steam generators in pressurized water reactors operate at 315–325°C with primary coolant pressures near 155 bar. Incoloy 800 is an ASME Section III nuclear code material that offers the corrosion resistance, creep strength and non-magnetic properties required for nuclear service.
- Flue Gas Treatment Systems
Flue gas desulfurization systems handle gas streams containing sulfur dioxide and hydrochloric acid vapors at 200–450°C. Incoloy 800 pipes resist both acid dewpoint corrosion and chloride attack, reducing maintenance in flue gas ducting from annual to every 3–5 years.
Benefits of Using Incoloy 800 Pipes in Power Plants
- Longer Service Life
Incoloy 800 pipes in superheater and heat exchanger service routinely exceed 20-year design lives, reducing the frequency of planned tube bundle replacements that cost a lot per event, including labor, scaffold, and downtime.
- Lower Maintenance Costs
Plants that switch boiler superheater tubing from T91 ferritic steel to Incoloy 800 report a 40–50% reduction in unplanned maintenance interventions over a 10-year period, because better oxidation resistance means less wall thinning and fewer forced outages.
- Improved Operational Efficiency
Carbon steel tubes that oxidize internally reduce heat transfer by 8–12% after five years. Incoloy 800 tubes hold within 2% of original thermal performance at the same interval, keeping heat transfer coefficients close to design values throughout the service life.
- Enhanced Plant Safety
Incoloy 800’s documented creep and rupture data allow accurate fitness-for-service assessments at any point in a pipe’s life, giving engineers reliable data for remaining-life calculations rather than conservative early replacements.
- Cost Efficiency Over Lifecycle
Incoloy 800 pipes cost 4 to 6 times more per meter than standard stainless. Over a 25-year plant life, lower replacement frequency, reduced maintenance labor, and avoided forced-outage penalties produce a net lifecycle cost 20–30% lower than equivalent stainless steel installations in high-temperature service.
How to Choose the Right Incoloy 800 Pipes and Supplier
Confirm whether the application needs standard Incoloy 800 (UNS N08800) or the stabilized variants, Incoloy 800H for creep resistance above 600°C, or Incoloy 800HT for service above 700°C. Specify outside diameter and wall thickness per ASME B36.19M, and choose seamless construction certified to ASTM B407 for pressure service above 50 bar.
Choose an Incoloy 800 Pipe Supplier who maintains ASTM B407 and ASME SB-407 certified material with third-party test reports by pipe lot, complete heat-to-product traceability and verified stock depth in the size range needed for the project. Suppliers knowledgeable of ASME Section I and B31.1 requirements handle quality documentation correctly the first time. This avoids costly rework on material records.
Pipe Selection Checklist
- Confirm alloy grade: Incoloy 800, 800H, or 800HT based on service temperature
- Specify OD and wall thickness per ASME B36.19M schedule
- Select seamless for pressure service above 50 bar (ASTM B407)
- Request mill test reports with heat number traceability
- Verify ASME B31.1 design pressure compliance
- Confirm supplier delivery lead time against project schedule
Conclusion
Incoloy 800 piping meets the demanding requirements of power generation applications, including long term high temperature strength, corrosion resistance for service life of over 20 years, stable performance under daily thermal cycling and reliable pressure integrity in boilers, heat exchangers, superheaters and nuclear steam generators. Their lifecycle cost advantage over stainless steel makes them the practical choice for any plant running above 550°C.
Jayesh Metal Corporation stocks Incoloy 800 Pipes in full size range with ASTM B407 certification, full mill test report and same shipment traceability documentation. Please contact our team to confirm stock and to request a quote for your specific pipe dimensions and delivery schedule.
