Marine and shipbuilding engineers face a challenge few sectors encounter: structures exposed to seawater for decades. Dissolved salts, oxygen, and microorganisms continually attack metals, while high-pressure ballast systems, fuel lines, and heat exchangers make material choice even more critical. Marine grade monel pipes provide a dependable solution. With Monel 400 nickel-copper composition, they resist seawater corrosion much better than stainless steel grades suited to freshwater or mild chemical service applications.

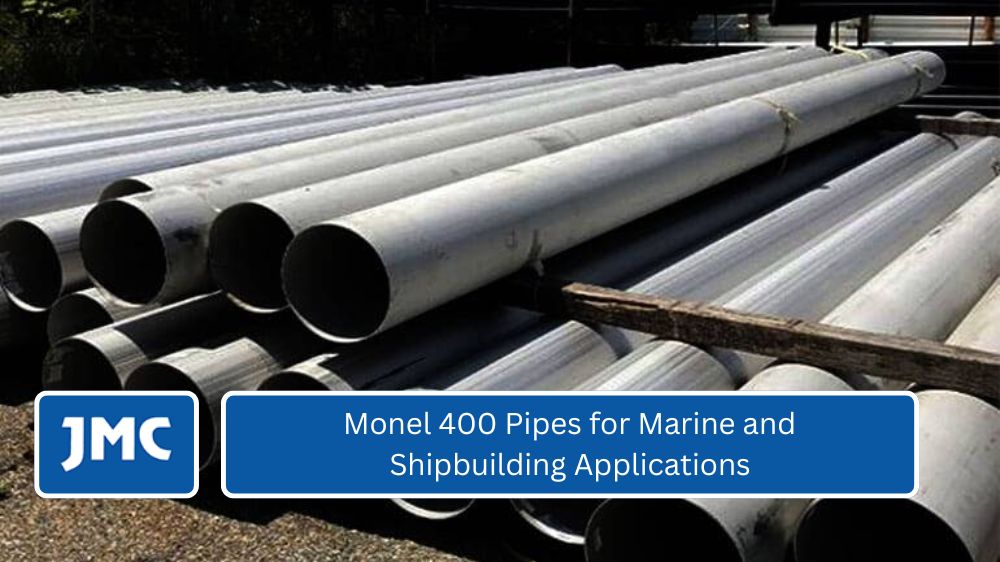

What Are Monel 400 Pipes?
Monel 400 is part of the nickel-copper alloy group designed for highly corrosive conditions. It contains 63% to 70% nickel and 28% to 34% copper, along with iron and manganese to support microstructural stability. UNS N04400 Pipes follow ASTM and ASME unified numbering standards, with ASTM B165 covering seamless tubes and ASTM B730 covering welded pipe. Nickel Copper Alloy Pipes are available in 6 mm to 600 mm outer diameters and Schedule 5S to Schedule XXS wall thicknesses, in annealed or hot-worked forms for flexible forming and bending during fabrication.
Chemical Composition of Monel 400 Pipes
- Nickel (Ni): 63.0% minimum
- Copper (Cu): 28.0% to 34.0%
- Iron (Fe): 2.5% maximum
- Manganese (Mn): 2.0% maximum
- Carbon (C): 0.30% maximum
- Sulfur (S): 0.024% maximum
High nickel content resists reducing acids and alkalis, while copper improves stability in oxidising media and flowing saltwater. This single-phase solid solution prevents segregated zones where localised corrosion can start. As seawater passes over Monel 400, it resists pitting, undercutting, and corrosion-cell formation better than low-alloy steels or 316 stainless.
Key Properties of Monel 400 Pipes
Seawater corrosion resistance
Monel 400 Pipes hold a corrosion rate below 0.025 mm per year in flowing seawater at velocities up to 4 m/s. That puts performance on par with titanium for marine service at a lower cost per kilogram. Stagnant or low-velocity seawater raises the corrosion rate slightly, so design typically incorporates continuous flow.
Mechanical strength
At room temperature, Monel Alloy 400 Pipes deliver 480 MPa tensile strength and 170 MPa yield strength in the annealed condition. Cold-worked pipe pushes yield strength above 600 MPa, suiting high-pressure shipboard systems without requiring thicker walls.
Pitting and crevice corrosion resistance
Monel 400 does not rely on a chromium oxide passive film, so the mechanism for pitting is largely absent. Crevice tests in chloride-rich seawater show no measurable mass loss over 500-hour exposures at temperatures up to 50°C.
Thermal conductivity
At 100°C, thermal conductivity reaches 21.8 W/m.K. In heat exchanger service, that supports efficient heat transfer between seawater cooling circuits and shipboard systems without oversized surface area.
Weldability
Monel 400 welds cleanly with ERNiCu-7 filler wire using GTAW or SMAW. Post-weld heat treatment is not mandatory for most marine services, cutting fabrication time and cost on large piping assemblies.
Temperature range
UNS N04400 Pipes retain ductility down to -100°C and handle continuous service up to 480°C. That range covers arctic offshore drilling and tropical desalination plant conditions within a single material specification.
Why Monel 400 Pipes Suit Marine Applications
Flowing seawater creates one of the harshest corrosion conditions for piping materials. Monel 400 Pipes withstand flow speeds up to 4 m/s without erosion-corrosion damage, while carbon steel starts deteriorating above 0.9 m/s. On commercial vessels, a properly designed Monel piping system can last through two to three carbon steel replacement cycles, reducing long-term material and labour expenses. Its surface chemistry also limits biofouling by discouraging biofilm growth. Offshore structures benefit from their stable mechanical properties under changing pressure, temperature, water depth, and marine conditions.
Applications of Monel 400 Pipes in Shipbuilding
Seawater piping systems
Shipboard seawater systems move cooling water, firefighting supply and ballast through the hull. Nickel Copper Alloy Pipes can perform these duties without internal corrosion, which is due to steady flow rates throughout the service life of the vessel.
Heat exchangers and condensers
UNS N04400 Tubes in shell-and-tube heat exchangers are used for seawater service at 60 to 80°C, providing better thermal conductivity, corrosion resistance and chloride attack protection than copper-nickel.
Marine fuel and ballast systems
Fuel transfer lines and ballast piping on tankers and bulk carriers require both corrosion resistance and pressure integrity. Monel 400 Pipes meet the DNV and Lloyd’s Register specifications that class societies require for these critical shipboard systems.
Pump and valve components
Pump casings, impellers and valve bodies machined from Monel 400 or fabricated from UNS N04400 Pipes resist cavitation erosion and chloride attack simultaneously, making them the preferred choice for seawater lift pumps and bilge systems.
Offshore oil and gas platforms
Subsea risers and topside chemical injection lines carry highly corrosive process fluids alongside ambient seawater exposure. Monel Alloy 400 Pipes deliver the dual resistance that single-environment alloys cannot match.
Desalination plants
Reverse osmosis and multi-stage flash desalination units run at high brine concentrations and elevated temperatures. The alloy resists chloride pitting and stress corrosion cracking across multi-year campaigns without performance degradation.
Marine cooling water systems
Central freshwater cooling systems that exchange heat with seawater use Monel 400 on the seawater side. The alloy maintains heat transfer efficiency while resisting the slow erosion that shortens the life of copper-nickel alternatives in high-velocity circuits.
Advantages of Monel Alloy 400 Pipes
Corrosion resistance in reducing acid and flowing saltwater environments exceeds duplex stainless steel grades. Toughness at low temperatures eliminates material upgrades in arctic-grade designs. Stress corrosion cracking, a failure mode that removes austenitic stainless steels from chloride-heavy service, does not affect Monel 400 under normal marine conditions. Replacement intervals stretch from 5 to 7 years for carbon steel systems to 20-plus years for a properly maintained Monel installation. Machinability and weldability ratings sit closer to carbon steel than to titanium, keeping workshop hours and consumable costs in check.
Factors to Consider When Selecting Monel 400 Pipes
Begin by defining the service environment, because flowing seawater, stagnant brine, and mixed fluids affect Monel 400 differently. Select wall thickness for the worst corrosion condition, not the average case. Pressure and temperature limits should be calculated from ASME B31.1 or B31.3 allowable stresses for UNS N04400 rather than carbon steel data. For shipboard piping, use ASTM B165 for seamless pipe or ASTM B730 for welded pipe, as these standards define dimensional tolerances. Corrosion allowance shall be appropriate to the regional seawater chemistry, including salinity, temperature and biological activity. Welding, filler metals, and inspection should follow AWS D1.6 or equivalent nickel alloy codes.
Conclusion
Monel 400 Pipes deliver what marine and shipbuilding applications demand: resistance to seawater corrosion over long service lives, mechanical strength under high-pressure and temperature conditions, and fabrication characteristics that suit complex shipboard piping layouts. Monel Alloy 400 pipe is nickel-copper chemistry so it is not subject to the passive-film dependency that limits stainless steel grades in chloride environments, and the alloy has a track record of more than six decades on commercial vessels, offshore platforms, and desalination plants. Jayesh Metal Corporation stocks UNS N04400 Pipes in a wide range of sizes and schedules from its warehouse in Mumbai to support both project-volume requirements and urgent replacement orders with short lead times.
