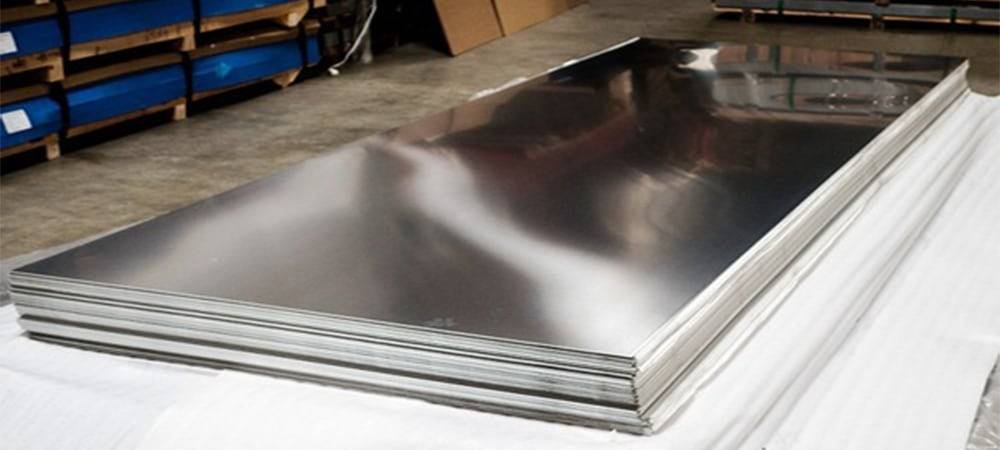

Incoloy 800 / 800H / 800HT Sheets, Plates & Coils
ASTM B409 / UNS N08800-N08810-N08811 / DIN 1.4876-1.4958-1.4876-1.4859.
These bars are now becoming the parts of the boilers, exchangers, pressure vessels, and in many chemical industries. The company offers the custom-made bars also who sizes and specifications are according to the client guidance.
Incoloy 800 Sheets, ASTM B409 Incoloy 800H Hot Rolled Plate, UNS N08800 Sheets and Coils, Incoloy 800 Coils, DIN 1.4958 / 1.4876 Plates and Coils, WERKSTOFF NR. 1.4876 Sheets, Plates & Coils, UNS N08810 Sheets and Plates, Incoloy 800 Plates, WERKSTOFF NR. 1.4859 Sheets & Plates, UNS N08811 plates and Coils, Incoloy 800HT Cold Rolled Sheet, Plates & Coils Supplier in Mumbai, India.
Incoloy 800 alloy is chromium-nickel alloy that is having the high tensile strength and good resistance. Incoloy 800H / 800HT is chromium-nickel-iron alloy. Jayesh metal is the top leading stockiest and supplier of the stunning quality of Incoloy 800 / 800H / 800HT Sheets Plates. The industry is providing the item in various specifications as per the demand of the buyer. The feature that has made the item to be very high in demand is rugged construction, high tensile strength, high flexibility, high durability, anti-corrosive etc.
Incoloy Alloy 800H Export Polish Sheets, Incoloy Alloy 800 Slitting Coils, Incoloy 800HT Diamond Plate, Incoloy 800 Chequered Plate, Incoloy 800H Shim Sheet, Incoloy 800 Foils, Incoloy Alloy 800HT Polished Plates, Incoloy 800 Strip, Plates & Coils Exporter, Incoloy 800 Circle, Incoloy 800 Galvanized Coils, Incoloy 800HT Perforated Sheet, Corrosion Resistance Incoloy 800T Sheets & Plates, Incoloy 800 Plain Sheets.
Furthermore it because of being highly resistance to carburization and nitridation, the item is used in various applications. With respect to both national and international product standard, the item is supplied to buyers at reasonable rates. The dimensions of it are ASTM, ASME, ANSI, JIS, DIN, EN, BS, GB etc. The specifications of it are AMS 5877, ASME SB 409. The forms of it are the chequered plate, shim sheet, perforated sheet, flats, and strips, blank, ring etc. The thickness of it is available in 0.1mm to 12mm THK. The size in which it is available is 15Nb to 150NB IN. The finishes of it are the hot rolled plate, SATIN, cold rolled plate, 2B, 2D, BA, No8.
The producers are offering MTC in accordance to EN 10204 3.1/3.2, third-party inspection report, lab test report etc. The item is packed carefully in wooden boxes or crates, carton box etc. This makes the item to be shipped with full safety and precautions from damages. Just buy it at reasonable rates.
Incoloy 800/800H/800HT Sheets, Plates & Coils Specification
Standard : ASTM B409, ASME SB409
Thickness : 0.1mm to 12 mm Thk
Sheet/Plate Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Coil Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc.
Coil Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm etc.
Surface : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching.
Finish : Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc.
Equivalent Grades, Chemical Composition and Mechanical properties
Incoloy Alloy 800/800H/800HT Sheets, Plates & Coils Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Incoloy 800/800H/800HT Sheets, Plates & Coils Chemical Composition
| Grade | C | Mn | Si | S | Cr | Fe | Ni | Cu | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 19 – 23 | 39.50 min | 30 – 35 | 0.75 max | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 19 – 23 | 39.50 min | 30 – 35 | 0.75 max | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 19 – 23 | 39.50 min | 30 – 35 | 0.75 max | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800/800H/800HT Sheets, Plates & Coils Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Available Types of Sheets, Plates & Coils
ASTM B409 Incoloy 800 Hot Rolled Sheet, Plate & Coils
UNS N08800 Hot Rolled Sheet, Plate & Coils
DIN 1.4958 Hot Rolled Sheet, Plate & Coils
Incoloy 800 Hot Rolled Sheet, Plate & Coils
UNS N08810 Hot Rolled Sheet, Plate & Coils
Incoloy Alloy 800 Hot Rolled Sheet, Plate & Coils
DIN 1.4876 Hot Rolled Sheet, Plate & Coils
UNS N08811 Hot Rolled Sheet, Plate & Coils
ASME SB409 Incoloy 800HT Hot Rolled Sheet, Plate & Coils
WERKSTOFF NR.1.4859 / 1.4876 Hot Rolled Sheet, Plate & Coils
ASTM B409 Incoloy 800 Cold Rolled Sheet, Plate & Coils
UNS N08800 Cold Rolled Sheet, Plate & Coils
DIN 1.4958 Cold Rolled Sheet, Plate & Coils
Incoloy 800 Cold Rolled Sheet, Plate & Coils
UNS N08810 Cold Rolled Sheet, Plate & Coils
Incoloy Alloy 800HT Cold Rolled Sheet, Plate & Coils
DIN 1.4876 Cold Rolled Sheet, Plate & Coils
UNS N08811 Cold Rolled Sheet, Plate & Coils
ASME SB409 Incoloy 800HT Cold Rolled Sheet, Plate & Coils
WERKSTOFF NR.1.4859 / 1.4876 Cold Rolled Sheet, Plate & Coils
ASTM B409 Incoloy 800 Mirror Polish Sheet, Plate & Coils
UNS N08800 Mirror Polish Sheet, Plate & Coils
DIN 1.4958 Mirror Polish Sheet, Plate & Coils
Incoloy 800H Mirror Polish Sheet, Plate & Coils
UNS N08810 Mirror Polish Sheet, Plate & Coils
Alloy 800H Mirror Polish Sheet, Plate & Coils
DIN 1.4876 Mirror Polish Sheet, Plate & Coils
UNS N08811 Mirror Polish Sheet, Plate & Coils
ASME SB409 Incoloy 800HT Mirror Polish Sheet, Plate & Coils
WERKSTOFF NR.1.4859 / 1.4876 Mirror Polish Sheet, Plate & Coils
ASTM B409 Incoloy 800 Galvanized Sheet, Plate & Coils
UNS N08800 Galvanized Sheet, Plate & Coils
DIN 1.4958 Galvanized Sheet, Plate & Coils
Incoloy 800HT Galvanized Sheet, Plate & Coils
UNS N08810 Galvanized Sheet, Plate & Coils
Incoloy Alloy 800 Galvanized Sheet, Plate & Coils
DIN 1.4876 Galvanized Sheet, Plate & Coils
UNS N08811 Galvanized Sheet, Plate & Coils
ASME SB409 Incoloy 800HT Galvanized Sheet, Plate & Coils
WERKSTOFF NR.1.4859 / 1.4876 Galvanized Sheet, Plate & Coils
ASTM B409 Incoloy 800 Plain Sheets
UNS N08800 Plain Sheets
DIN 1.4958 Plain Sheets
Incoloy 800 Plain Sheets
UNS N08810 Plain Sheets
Alloy 800HT Plain Sheets
DIN 1.4876 Plain Sheets
UNS N08811 Plain Sheets
ASME SB409 Incoloy 800HT Plain Sheets
WERKSTOFF NR.1.4859 / 1.4876 Plain Sheets
ASTM B409 Incoloy 800 Shim Sheet
UNS N08800 Shim Sheet
DIN 1.4958 Shim Sheet
Incoloy 800 Shim Sheet
UNS N08810 Shim Sheet
Incoloy Alloy 800H Shim Sheet
DIN 1.4876 Shim Sheet
UNS N08811 Shim Sheet
ASME SB409 Incoloy 800HT Shim Sheet
WERKSTOFF NR.1.4859 / 1.4876 Shim Sheet
ASTM B409 Incoloy 800 Perforated Sheet
UNS N08800 Perforated Sheet
DIN 1.4958 Perforated Sheet
Incoloy 800HT Perforated Sheet
UNS N08810 Perforated Sheet
Alloy 800 Perforated Sheet
DIN 1.4876 Perforated Sheet
UNS N08811 Perforated Sheet
ASME SB409 Incoloy 800HT Perforated Sheet
WERKSTOFF NR.1.4859 / 1.4876 Perforated Sheet
ASTM B409 Incoloy 800 Chequered Plates
UNS N08800 Chequered Plates
DIN 1.4958 Chequered Plates
Incoloy 800H Chequered Plates
UNS N08810 Chequered Plates
Incoloy Alloy 800 Chequered Plates
DIN 1.4876 Chequered Plates
UNS N08811 Chequered Plates
ASME SB409 Incoloy 800HT Chequered Plates
WERKSTOFF NR.1.4859 / 1.4876 Chequered Plates
ASTM B409 Incoloy 800 Circles
UNS N08800 Circles
DIN 1.4958 Circles
Incoloy 800HT Circles
UNS N08810 Circles
Alloy 800H Circles
DIN 1.4876 Circles
UNS N08811 Circles
ASME SB409 Incoloy 800HT Circles
WERKSTOFF NR.1.4859 / 1.4876 Circles
ASTM B409 Incoloy 800 Slitting Coils
UNS N08800 Slitting Coils
DIN 1.4958 Slitting Coils
Incoloy 800 Slitting Coils
UNS N08810 Slitting Coils
Incoloy Alloy 800HT Slitting Coils
DIN 1.4876 Slitting Coils
UNS N08811 Slitting Coils
ASME SB409 Incoloy 800HT Slitting Coils
WERKSTOFF NR.1.4859 / 1.4876 Slitting Coils
